KingTone Cables

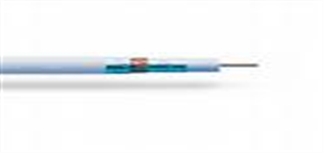

19VATC

Application

Construction


  Material

 Diameter(mm)

Inner Conductor CCS /BC 1.02
Dielectric Foam PE 4.60
First Shield  AL/BC Foil
Second Shield AL/BC Braid 35%-45%
Jacket PVC  6.80


Electrical Characteristics


Impedance ()  75±3
Capacitance (pF/m) 52±2
Velocity of Propagation()  85.0
Return Loss
5-1000MHz(dB) ≥22
1000-3000MHz(dB) ≥20

Screening Effectiveness


5-1000MHz(dB)  ≥70


Attenuation(@20°C)


Frequency (MHZ)  Max Attenuation (dB/100m)
5 1.8
50 4.6
100 7.1
200 9.0
400 13.0
800

19.0

862

19.8

950 20.9
1350 25.5
1750 29.6
2150

33.4

3000 40.6
