KingTone Cables

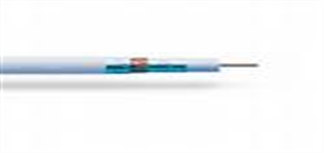

17VATC

Application

Construction


  Material

 Diameter(mm)

Inner Conductor CCS /BC 1.13
Dielectric Foam PE 4.80
First Shield  AL/BC Foil
Second Shield AL/BC Braid 35%-45%
Jacket PVC  6.80


Electrical Characteristics


Impedance ()  75±3
Capacitance (pF/m) 52±2
Velocity of Propagation()  85.0
Return Loss
5-1000MHz(dB) ≥22
1000-3000MHz(dB) ≥20

Screening Effectiveness


5-1000MHz(dB)  ≥70


Attenuation(@20°C)


Frequency (MHZ)  Max Attenuation (dB/100m)
5 1.3
50 3.7
100  5.6
200 8.1
400 11.7
800

17.0

862

17.7

950 18.7
1350 22.8
1750 26.4
2150 29.8
3000 36.2
